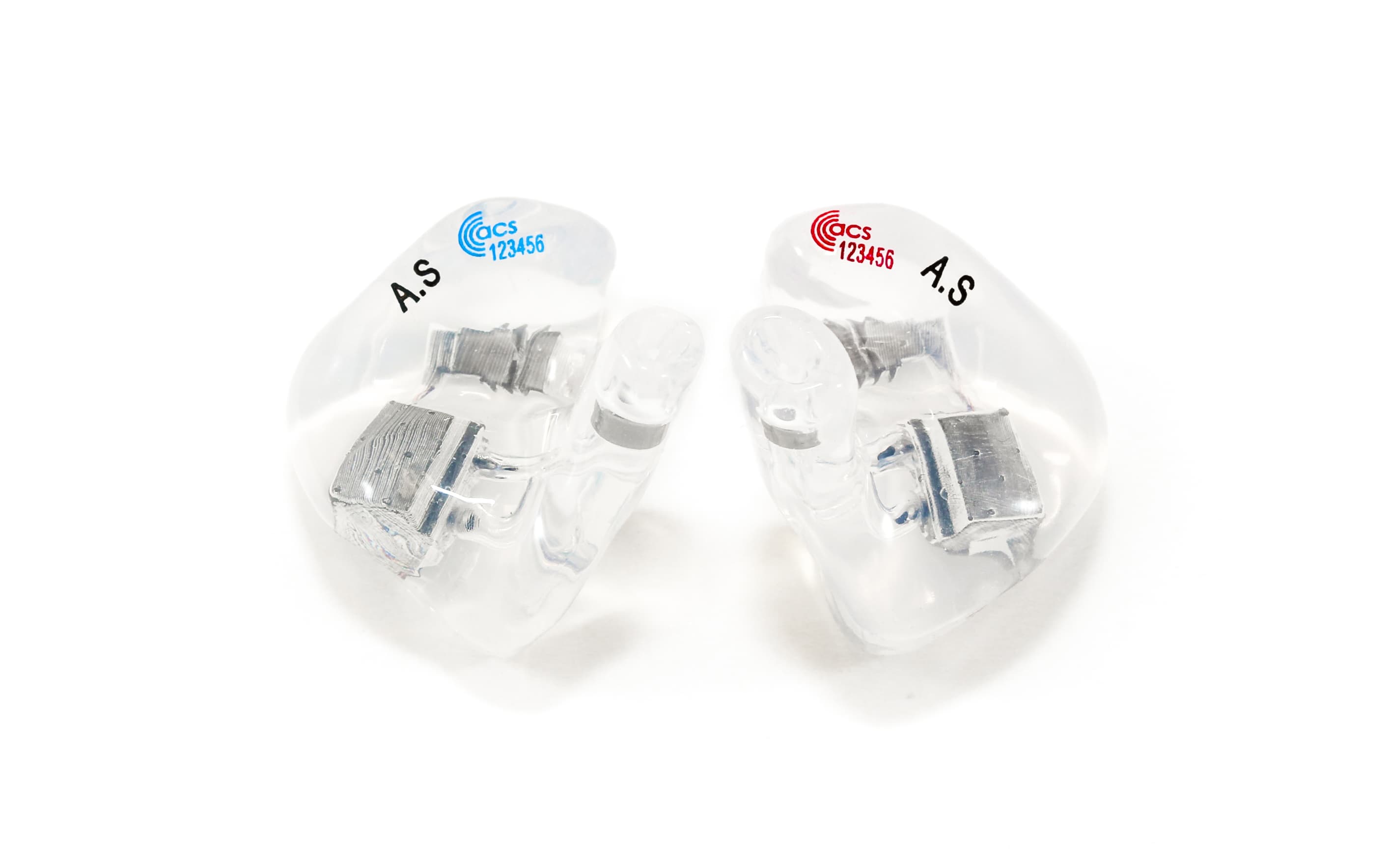

ACS Evoke2 In-ear Monitor


Buy Now

An entry level in-ear monitor with professional specs. The Evoke2 features two wide-band balanced armature drivers to punches out the low end, which will really make you feel the music. It also features ACS exclusive Sound Stage Imaging (SSI) technology, the Evoke2 allows you to hear parts of the music you never knew existed before.

Product Features

  • 2 Knowles Wideband Balanced Armature Drivers
  • *Ambient series includes a tuned vented port with a 17dB ambient attenuating filter
  • Patent pending IRIS and ACS Sound Stage Imaging (SSI) technology
  • Built from 40 Shore medical grade silicone finished with a hard wearing flexible lacquer
  • Detachable 1.3m cable with 2-pin connection and memory ear hook

The cable fitted to your ACS monitors is of the highest quality. Manufactured to our own specification, each cable contains 80 strands of 100% oxygen free copper with each strand plated in pure silver. Aramid fibers (Kevlar) are woven into the twists to provide exceptional pulling strength and breaking strain. The sheathing on the cable is treated to dismiss harmful UV rays and will not discolor or oxidize like many other inferior cables. The design of the cable provides the best connectivity between your audio source and the earphones. When the cable is fitted at the factory it has optimum contact to the cable socket, therefore we strongly recommend that you don't disconnect the cable unless it requires replacing.

Technical Specifications

  • Frequency Range 40hz-18Khz
  • Transducer Type 2 Knowles Wideband Balanced Armature Drivers
  • Input Sensitivity 112dB @ 1Khz
  • Impedance 27ohms @ 1Khz
  • Input Connector Straight 3.5mm Gold-Plated
  • Noise Isolation [Classic: approximately 30dB] [Ambient: 17dB] reduction of ambient noise

Care and Maintenance

We make our in-ear monitors with pride and like all things worth having, they are worth looking after. Just follow these simple rules and you should receive many years of trouble-free service.

Check the sound ducts after each use and use the wire pick supplied to remove any ear wax that has made its way into the tubing.

Never use the cables to remove your in-ear monitors - this will eventually put strain on the connector and will damage the cable or socket.

Ensure moisture from either humidity or sweat is removed straight after use. We supply silica gel and a zip up pouch for this purpose. We recommend using your ACS Revivo2 Dryer and Sanitizer after each use.

Finally, read the instructions supplied and watch the ACS cable fitting guide.
